Technical details

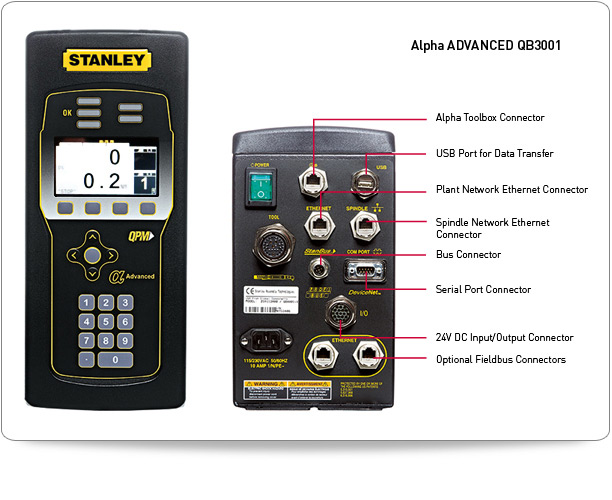

The Alpha ADVANCED QB3001 controls one spindle and can control one more via Ethernet.

• Large colour touch screen with user-friendly menu
• LEDs to show the status of the fastening process and the maintenance alarm
• 99 jobs, 99 tasks with 12 parameter steps
• All of the fastening strategies are to the latest state of the art
• Including elastic limit fastening and parameter gradient fastening
• Up to 10,000 items of fastening data are saved, including torque, angle of rotation, date and time
• Up to 10,000 fastening curves are saved
• Includes Alpha Toolbox software for diagnosis of the fastening tool,
to set parameters and to manage the process
• Integrated PLC, programmable via Alpha Toolbox
• Connection options: 24 V DC I/O, 8 inputs, 8 outputs, functions freely assignable
