Technical details

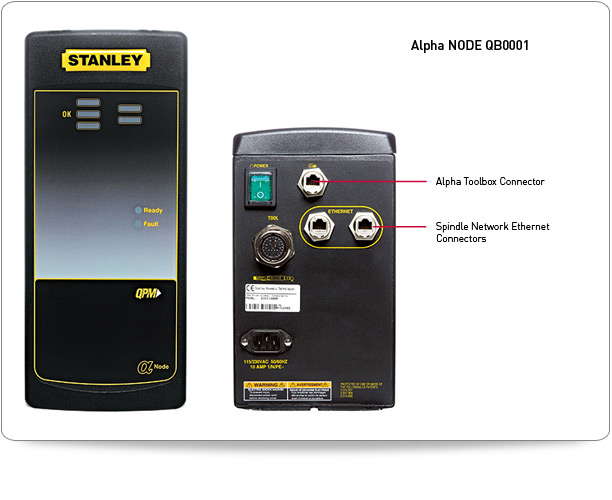

Alpha NODE QB0001 is ideal for multiple spindle applications.

  • 99 jobs, 99 tasks with 12 parameter steps
  • All of the fastening strategies are to the latest state of the art
  • Including elastic limit fastening and parameter gradient fastening
  • Up to 10,000 items of fastening data are saved, including torque, angle of rotation, date and time
  • Up to 10,000 fastening curves are saved
  • Can be controlled via the Advanced or Expert Alpha controller
  • Parameters are set via the Alpha Toolbox or via the Advanced or Expert Alpha controller
  • Includes Alpha Toolbox software for diagnosis of the fastening tool, to set parameters and to manage the process
  • Connection options: 2-switch RJ-45, 10/100BaseT Ethernet interface
