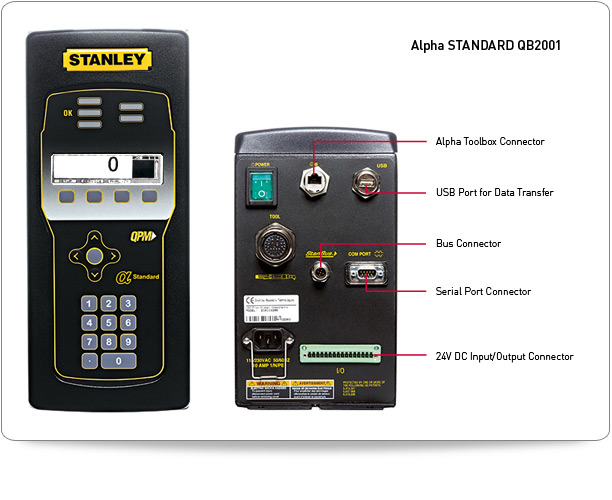

Technical details

• LED display with user-friendly menu
• LEDs to show the status of the fastening process and the maintenance alarm
• 16 jobs, 16 tasks with 8 parameter steps
• All of the fastening strategies are to the latest state of the art
• Including elastic limit fastening and parameter gradient fastening
• Up to 1,000 items of fastening data are saved, including torque, angle of rotation, date and time
• Up to 1,000 fastening curves are saved
• Parameters are set via the Alpha Toolbox Ethernet connection
• USB to quickly export fastening data and as a backup
• Includes Alpha Toolbox software for diagnosis of the fastening tool,
to set parameters and to manage the process
• Connection options: 24 V DC I/O, 8 inputs, 8 outputs, functions freely assignable
