Angled nut runners
Here you will find all of our angled nut runners. It is easy to view and compare technical data and models by clicking on ‘technical data’.
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

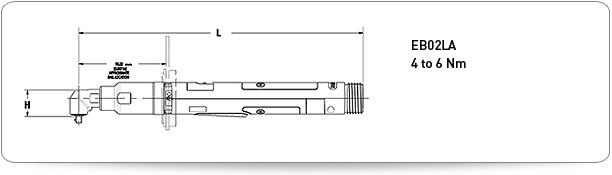

EB02LA10-4 |
1120 | 4 | 2,95 | 10 | 0,39 | 319,3 | 12,6 | 0,89 | 1,96 | 1/4" SD |
EB02LA10-6 |
742 | 6 | 4,42 | 10 | 0,39 | 319,3 | 12,6 | 0,89 | 1,96 | 1/4" SD |
EB02LA13-6 |
717 | 6 | 4,42 | 13 | 0,51 | 321,6 | 12,7 | 0,89 | 1,96 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

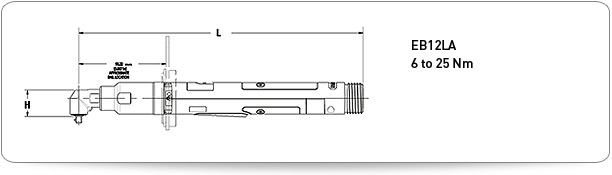

EB12LA10-6 |
2110 | 6 | 4,42 | 10 | 0,39 | 319,9 | 12,6 | 0,93 | 2,05 | 1/4" SD |
EB12LA13-9 |
1399 | 9 | 6,64 | 13 | 0,51 | 321,6 | 12,7 | 0,93 | 2,05 | 3/82 SD |
EB12LA13-18 |
764 | 18 | 13,27 | 13 | 0,51 | 321,8 | 12,7 | 0,93 | 2,05 | 3/8" SD |
EB12LA13-13 |
970 | 13 | 9,58 | 13 | 0,51 | 321,6 | 12,7 | 0,93 | 2,05 | 3/8" SD |
EB12LA15-25 |
507 | 25 | 18,43 | 15 | 0,59 | 346,2 | 13,6 | 1,06 | 2,33 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB22LA13-13 |
1552 | 13 | 9,58 | 13 | 0,51 | 343,3 | 13,5 | 1,08 | 2,38 | 3/8" SD |
EB22LA13-18 |
1076 | 18 | 13,27 | 13 | 0,51 | 343,3 | 13,5 | 1,08 | 2,38 | 3/8" SD |
EB22LA15-24 |
824 | 24 | 17,7 | 15 | 0,59 | 366,5 | 14,4 | 1,21 | 2,66 | 3/8" SD |
EB22LA15-40 |
470 | 40 | 29,49 | 15 | 0,59 | 366,5 | 14,4 | 1,23 | 2,71 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

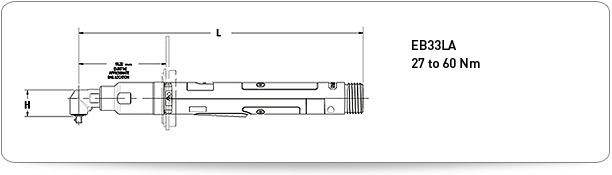

EB33LA15-27 |
1516 | 27 | 19,91 | 15 | 0,59 | 415,7 | 16,4 | 1,55 | 3,41 | 3/8" SD |
EB33LA15-40 |
1016 | 40 | 29,49 | 15 | 0,59 | 415,7 | 16,4 | 1,55 | 3,41 | 3/8" SD |
EB33LA18-35 |
1163 | 35 | 25,81 | 18 | 0,71 | 444,7 | 17,5 | 1,66 | 3,65 | 3/8" SD |
EB33LA18-48 |
881 | 48 | 35,39 | 18 | 0,71 | 455,4 | 17,9 | 1,66 | 3,65 | 3/8" SD |
EB33LA19-40 |
1023 | 40 | 29,49 | 19 | 0,75 | 458,4 | 18 | 1,87 | 4,11 | 1/2" SD |
EB33LA19-60 |
679 | 60 | 44,24 | 19 | 0,75 | 458,4 | 18 | 1,87 | 4,11 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

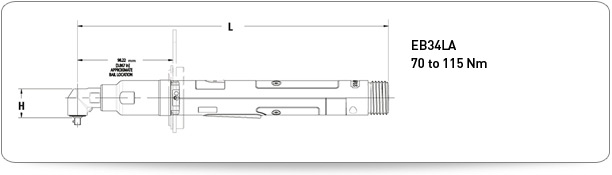

EB34LA19-70 |
610 | 70 | 51,61 | 19 | 0,75 | 488 | 19,2 | 2,34 | 5,15 | 1/2" SD |
EB34LA22A-80 |
511 | 80 | 58,98 | 22 | 0,87 | 530 | 20,9 | 2,66 | 5,85 | 1/2" SD |
EB34LA22A-115 |
337 | 115 | 84,79 | 22 | 0,87 | 530 | 20,9 | 2,66 | 5,85 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB43LA18-48 |
1362 | 48 | 35,39 | 18 | 0,71 | 455,4 | 17,9 | 2,1 | 4,62 | 3/8" SD |
EB43LA19-60 |
1128 | 60 | 44,24 | 19 | 0,75 | 458,4 | 18 | 2,31 | 5,08 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

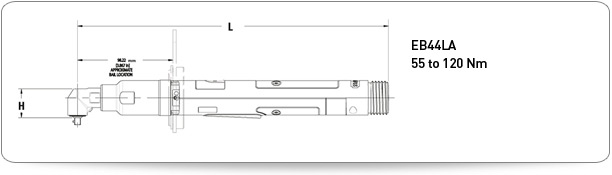

EB44LA19-55 |
1192 | 55 | 40,55 | 19 | 0,75 | 458,4 | 18 | 2,78 | 6,12 | 1/2" SD |
EB44LA19-80 |
843 | 80 | 58,98 | 19 | 0,75 | 488 | 19,2 | 2,78 | 6,12 | 1/2" SD |
EB44LA22A-80 |
807 | 80 | 58,98 | 22 | 0,87 | 539 | 21,2 | 3,1 | 6,82 | 1/2" SD |
EB44LA22A-120 |
551 | 120 | 88,48 | 22 | 0,87 | 539 | 21,2 | 3,1 | 6,82 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB45LA26-120 |
530 | 120 | 88,48 | 26 | 1,02 | 582 | 22,9 | 4,55 | 10,01 | 3/4" SD |
EB45LA26-165 |
397 | 165 | 121,65 | 26 | 1,02 | 582 | 22,9 | 4,55 | 10,01 | 3/4" SD |
EB45LA26-220 |
262 | 220 | 162,21 | 26 | 1,02 | 582 | 22,9 | 4,55 | 10,01 | 3/4" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

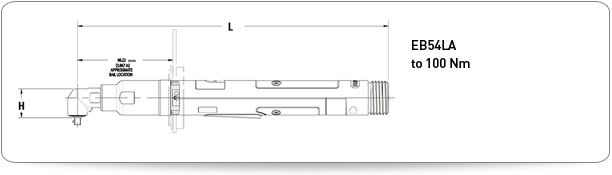

EB54LA22A-100 |
989 | 100 | 73,73 | 22 | 0,87 | 632 | 24,9 | 3,74 | 8,23 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

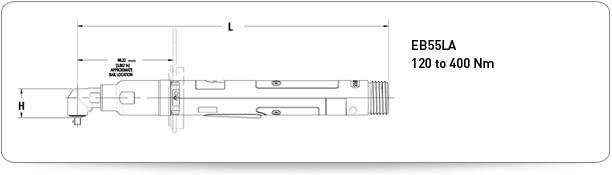

EB55LA26-120 |
824 | 120 | 88,48 | 26 | 1,02 | 632 | 24,9 | 5,19 | 11,42 | 3/4" SD |
EB55LA26-160 |
620 | 160 | 117,97 | 26 | 1,02 | 632 | 24,9 | 5,19 | 11,42 | 3/4" SD |
EB55LA26-220 |
459 | 220 | 162,21 | 26 | 1,02 | 632 | 24,9 | 5,19 | 11,42 | 3/4" SD |
EB55LA32-300 |
341 | 300 | 221,19 | 32 | 1,26 | 639 | 25,1 | 5,85 | 12,87 | 3/4" SD |
EB55LA32-400 |
225 | 400 | 294,92 | 32 | 1,26 | 639 | 25,1 | 5,85 | 12,87 | 3/4" SD |
