In-line nut runner
Here you will find all of our in-line nut runners. With our in-line nut runners, we differentiate between the ‘LB’ (push-to-button) and the ‘LP’ (push-to-start) versions. It is easy to view and compare technical data and models by clicking on ‘technical data’.
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

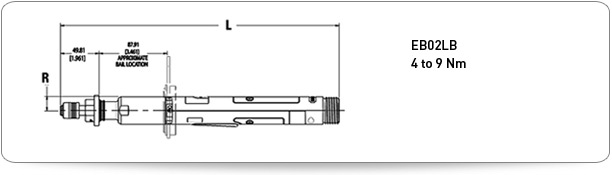

EB02LB-4 |
1113 | 4 | 3,00 | 17,80 | 0,70 | 358,80 | 14,10 | 0,74 | 1,63 | 1/4" QC |
EB02LB-6 |
782 | 6 | 4,40 | 17,80 | 0,70 | 358,80 | 14,10 | 0,74 | 1,63 | 1/4" QC |
EB02LB-9 |
505 | 9 | 6,60 | 17,80 | 0,70 | 358,80 | 14,10 | 0,74 | 1,60 | 1/4" QC |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB12LB-6 |
2301 | 6 | 3,70 | 17,80 | 0,70 | 358,80 | 14,1 | 0,69 | 1,52 | 1/4" QC |
EB12LB-9 |
1595 | 9 | 6,60 | 17,80 | 0,70 | 358,80 | 14,10 | 0,69 | 1,50 | 1/4" QC |
EB12LB-14 |
1022 | 14 | 10,30 | 17,80 | 0,70 | 358,80 | 14,10 | 0,69 | 1,52 | 1/4" QC |
EB12LB-20 |
659 | 20 | 14,80 | 17,80 | 0,70 | 358,80 | 14,10 | 0,69 | 1,52 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

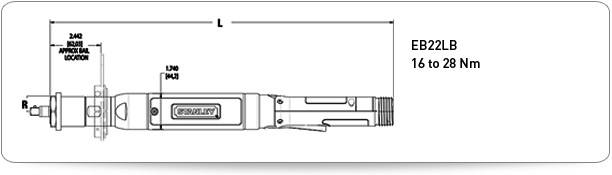

EB22LB-16 |
1339 | 16 | 11,80 | 23,70 | 0,93 | 351,60 | 13,80 | 1,06 | 2,33 | 3/8" SD |
EB22LB-28 |
731 | 28 | 19,90 | 23,70 | 0,93 | 351,60 | 13,80 | 1,06 | 2,33 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB33LB-28 |
1590 | 28 | 20,70 | 24,70 | 0,97 | 415,90 | 16,40 | 1,40 | 3,08 | 3/8" SD |
EB33LB-40 |
1117 | 40 | 28,80 | 24,70 | 0,97 | 415,90 | 16,40 | 1,40 | 3,08 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB34LB1-55 |
830 | 55 | 40,60 | 24,70 | 0,97 | 463,40 | 18,20 | 2,04 | 4,49 | 1/2" SD |
EB34LB1-75 |
546 | 75 | 55,30 | 24,70 | 0,97 | 485,30 | 19,10 | 2,04 | 4,49 | 1/2" SD |
EB34LB1-105 |
407 | 105 | 77,40 | 24,70 | 0,97 | 485,30 | 19,10 | 2,04 | 4,49 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB44LB1-80 |
895 | 80 | 58,30 | 24,70 | 0,97 | 478,90 | 18,90 | 2,48 | 5,46 | 1/2" SD |
EB44LB1-120 |
557 | 120 | 87,80 | 24,70 | 0,97 | 478,90 | 18,90 | 2,48 | 5,46 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

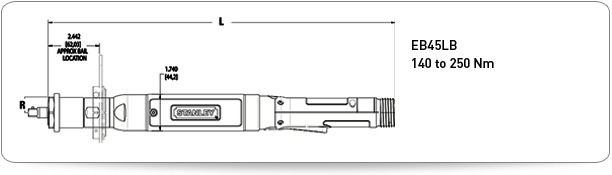

EB45LB2-140 |
463 | 140 | 103,30 | 34,00 | 1,35 | 533,00 | 21,00 | 3,42 | 7,52 | 3/4" SD |
EB45LB2-190 |
335 | 190 | 140,01 | 34,00 | 1,35 | 533,00 | 21,00 | 3,42 | 7,52 | 3/4" SD |
EB45LB2-250 |
268 | 250 | 184,40 | 34,00 | 1,35 | 533,00 | 21,00 | 3,42 | 7,52 | 3/4" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB55LB2-170 |
639 | 170 | 125,40 | 34,00 | 1,35 | 560,00 | 22,10 | 4,06 | 8,93 | 3/4" SD |
EB55LB2-250 |
401 | 250 | 184,40 | 34,00 | 1,35 | 560,00 | 22,10 | 4,06 | 8,93 | 3/4" SD |
EB55LB3-320 |
312 | 320 | 236,00 | 32,00 | 1,25 | 573,00 | 22,50 | 6,49 | 14,28 | 3/4" SD |
EB55LB4-460 |
222 | 460 | 339,30 | 44,00 | 1,70 | 621,00 | 24,40 | 3,06 | 6,73 | 1" SD |
EB55LB4-620 |
165 | 620 | 457,20 | 44,00 | 1,70 | 621,00 | 24,40 | 3,06 | 6,73 | 1" SD |
EB55LB4-800 |
123 | 800 | 590,10 | 44,00 | 1,70 | 621,00 | 24,40 | 3,06 | 6,73 | 1" SD |
EB55LB5-1100 |
81 | 1100 | 810,60 | 48,00 | 1,90 | 651,00 | 25,60 | 10,57 | 23,25 | 1" SD |
EB55LB5-1500 |
60 | 1500 | 1106,40 | 48,00 | 1,90 | 683,00 | 26,90 | 10,57 | 23,25 | 1" SD |
EB55LB5-2000 |
48 | 2000 | 1475,20 | 48,00 | 1,90 | 683,00 | 26,90 | 10,57 | 23,25 | 1" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

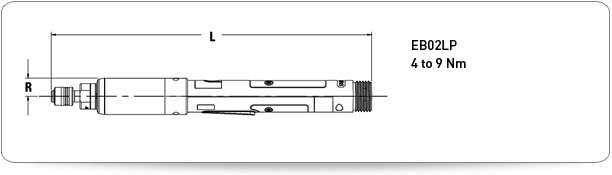

EB02LP-4 |
1113 | 4 | 3,00 | 20,40 | 0,80 | 358,80 | 14,10 | 0,74 | 1,63 | 1/4" QC |
EB02LP-6 |
782 | 6 | 4,40 | 20,40 | 0,80 | 358,80 | 14,10 | 0,74 | 1,63 | 1/4" QC |
EB02LP-9 |
505 | 9 | 6,60 | 20,40 | 0,80 | 358,80 | 14,10 | 0,74 | 1,63 | 1/4" QC |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB12LP-6 |
2301 | 5 | 3,70 | 20,40 | 0,80 | 358,80 | 14,10 | 0,69 | 1,52 | 1/4" QC |
EB12LP-9 |
1595 | 9 | 6,60 | 20,40 | 0,80 | 358,80 | 14,10 | 0,69 | 1,52 | 1/4" QC |
EB12LP-14 |
1022 | 14 | 10,30 | 20,40 | 0,80 | 358,80 | 14,10 | 0,69 | 1,52 | 1/4" QC |
