Pistol grip tools
Here you will find all of our pistol grip tools. It is easy to view and compare technical data and models by clicking on ‘technical data’.
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB02PB-4 |
1113 | 4 | 2,90 | 18,00 | 0,70 | 211,00 | 8,30 | 0,74 | 1,50 | 1/4" QC |
EB02PB-6 |
782 | 6 | 4,40 | 18,00 | 0,70 | 211,00 | 8,30 | 0,74 | 1,60 | 1/4" QC |
EB02PB-9 |
505 | 9 | 6,60 | 18,00 | 0,70 | 211,00 | 8,30 | 0,74 | 1,60 | 1/4" QC |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB12PB-6 |
2301 | 6 | 4,40 | 20,00 | 0,80 | 222,00 | 8,70 | 0,78 | 1,70 | 1/4" QC |
EB12PB-9 |
1595 | 9 | 6,60 | 20,00 | 0,80 | 236,00 | 9,30 | 0,78 | 1,70 | 1/4" QC |
EB12PB-14 |
1022 | 14 | 10,00 | 20,00 | 0,80 | 212,00 | 8,30 | 0,78 | 1,70 | 1/4" QC |
EB12PB-20 |
659 | 20 | 14,00 | 20,00 | 0,80 | 212,00 | 8,30 | 0,78 | 1,70 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB22PB-16 |
1226 | 16 | 11,00 | 26,00 | 1,04 | 248,00 | 9,70 | 1,16 | 2,50 | 1/4" QC |
EB22PB-21 |
980 | 21 | 15,00 | 26,00 | 1,04 | 248,00 | 9,70 | 1,16 | 2,50 | 3/8" SD |
EB22PB-29 |
669 | 29 | 21,00 | 26,00 | 1,04 | 248,00 | 9,70 | 1,16 | 2,50 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB33PB-28 |
1590 | 28 | 20,00 | 26,00 | 1,04 | 288,00 | 11,30 | 1,49 | 3,20 | 3/8" SD |
EB33PB-40 |
1117 | 40 | 29,00 | 26,00 | 1,04 | 288,00 | 11,30 | 1,49 | 3,20 | 3/8" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |

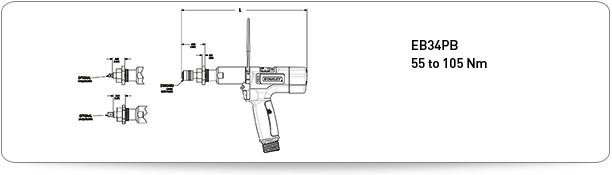

EB34PB-55 |
830 | 55 | 40,00 | 32,00 | 1,25 | 324,00 | 12,80 | 1,15 | 2,50 | 1/2" SD |
EB34PB1-75 |
858 | 75 | 55,00 | 32,00 | 1,25 | 324,00 | 12,80 | 1,15 | 2,50 | 1/2" SD |
EB34PB1-105 |
407 | 105 | 77,00 | 32,00 | 1,25 | 324,00 | 12,80 | 1,15 | 2,50 | 1/2" SD |
| Product | Speed | Torque range | Side to centre (‘R’) |
Length (‘L’) |
Weight | Bit drive | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | min-1 | Nm | lb ft | mm | in | mm | in | kg | lb | Standard |
EB44PB1-105 |
566 | 105 | 77,00 | 32,00 | 1,25 | 324,00 | 12,80 | 1,15 | 2,50 | 1/2" SD |
